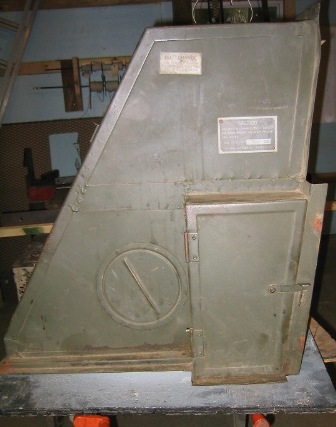

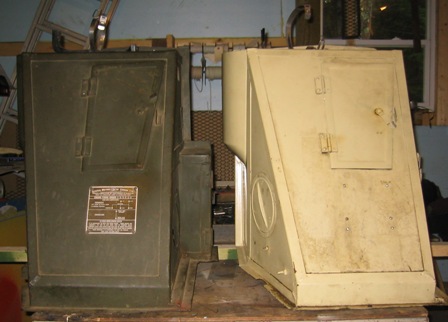

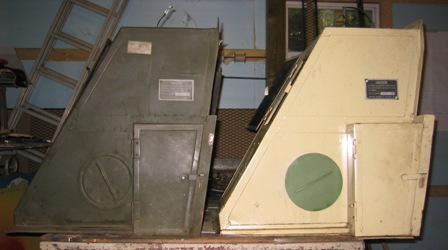

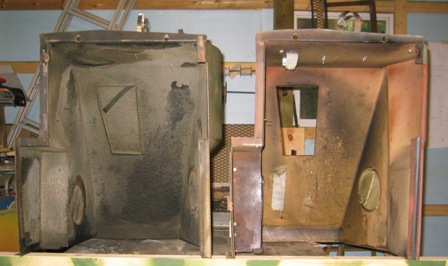

The drawings in this column are a small version of the individual sheet. To use them the best way is to save the High Resolution version (6800x4000 pixels 1MB in size) then open that file with your own photo editing program in that way you can adjust the size for detail viewing and printing. If you want to fabricate the individual parts I would suggest down loading the DWG. AutoCAD drawings they are full size 1"=1" most of these are ANSI D sizes 22x34 however a couple are ANSI E 34x44. (Files last updated and corrected 10/15/06)

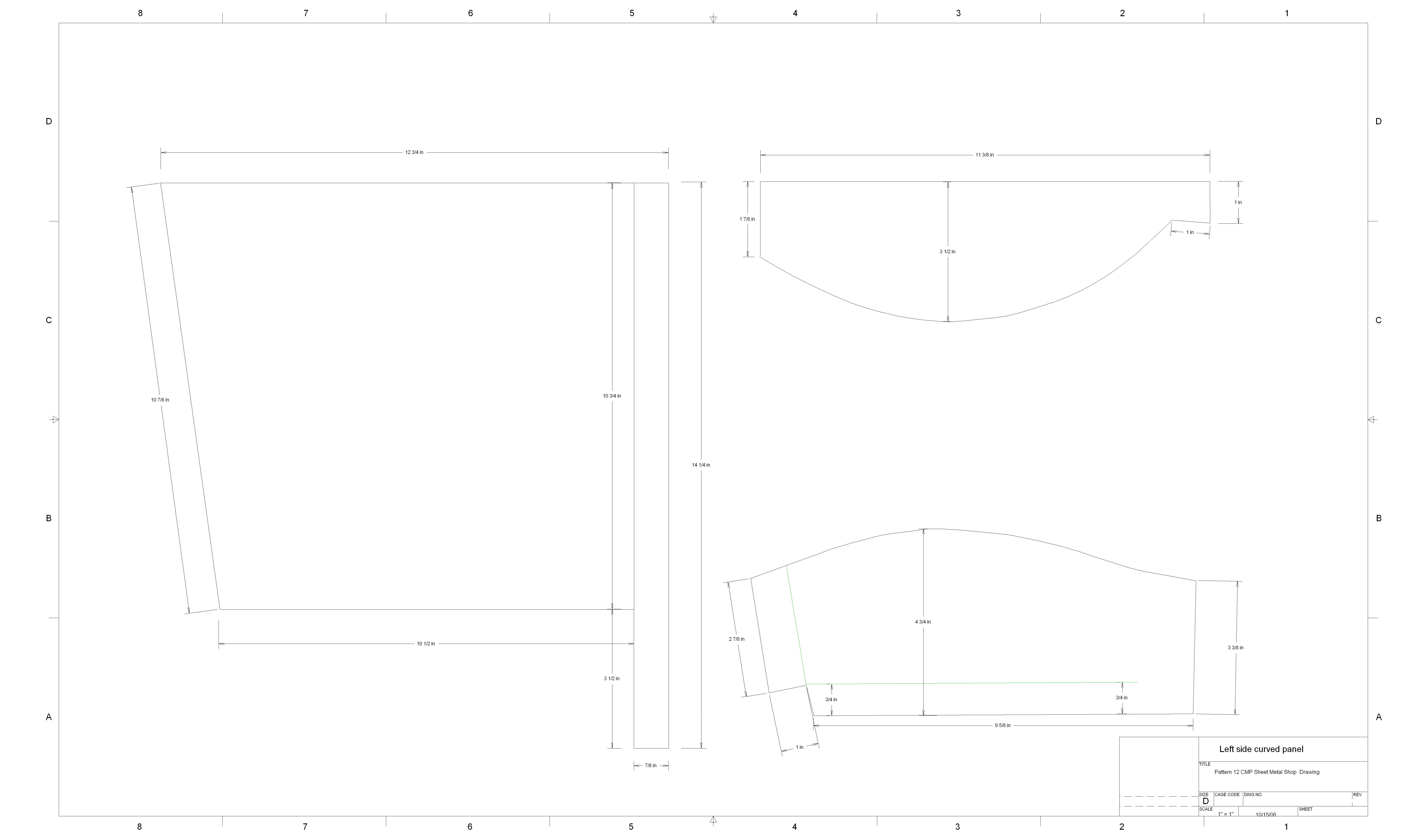

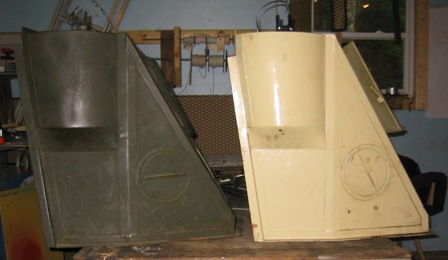

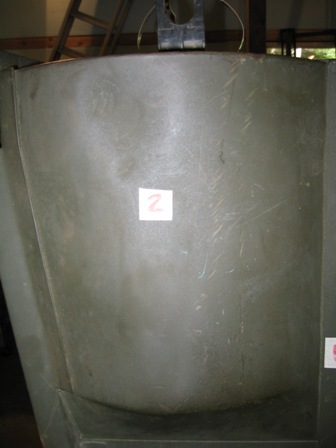

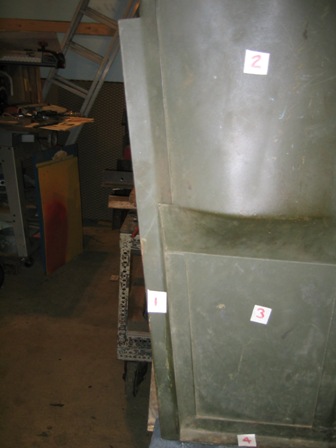

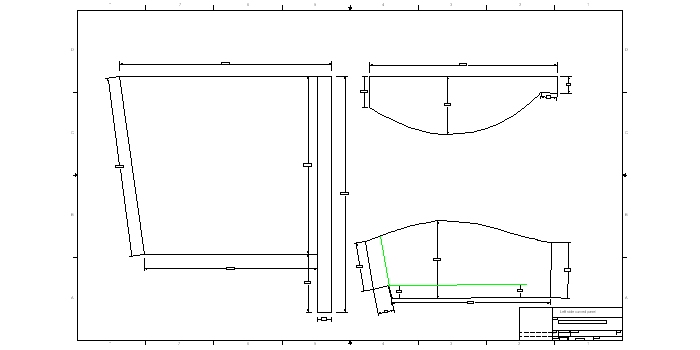

Left Curved Side Panel this orginally was done as a stamping this drawing shows the panel made up of three seperate pieces of steel weld to gether

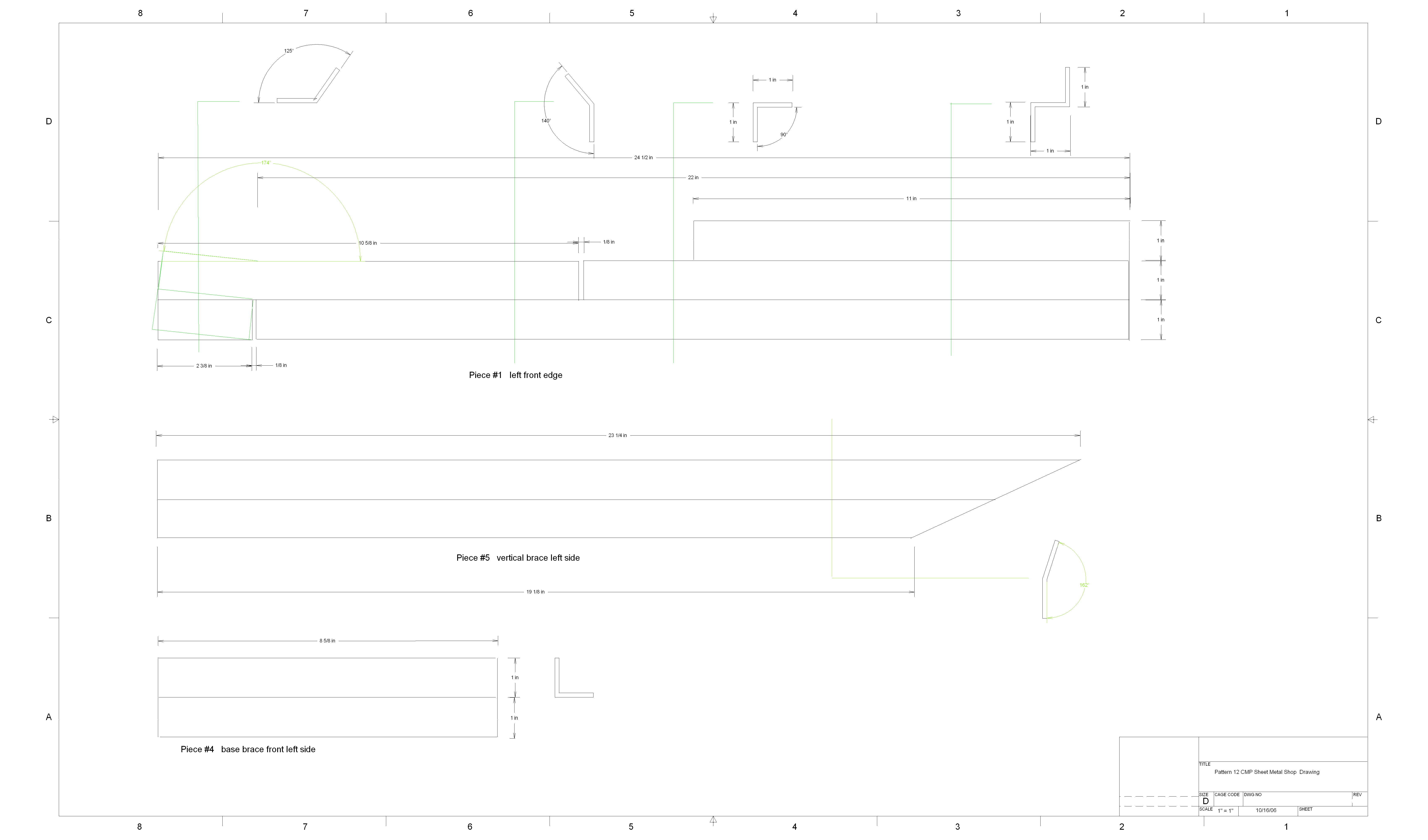

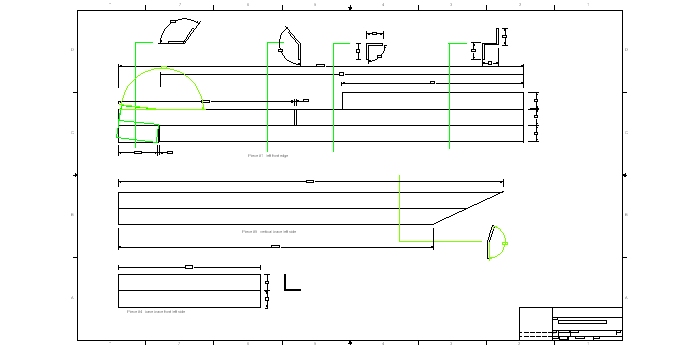

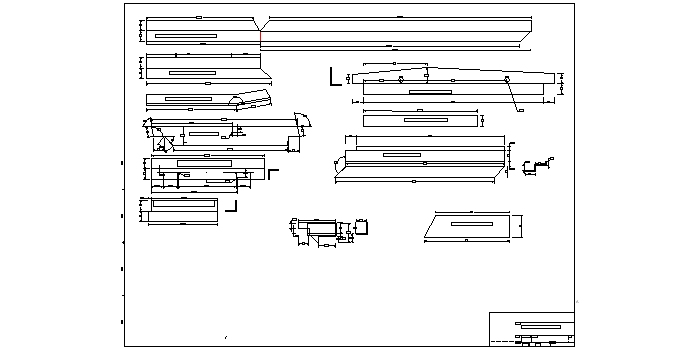

Pieces 18, 20, 22, 25, 27, 28

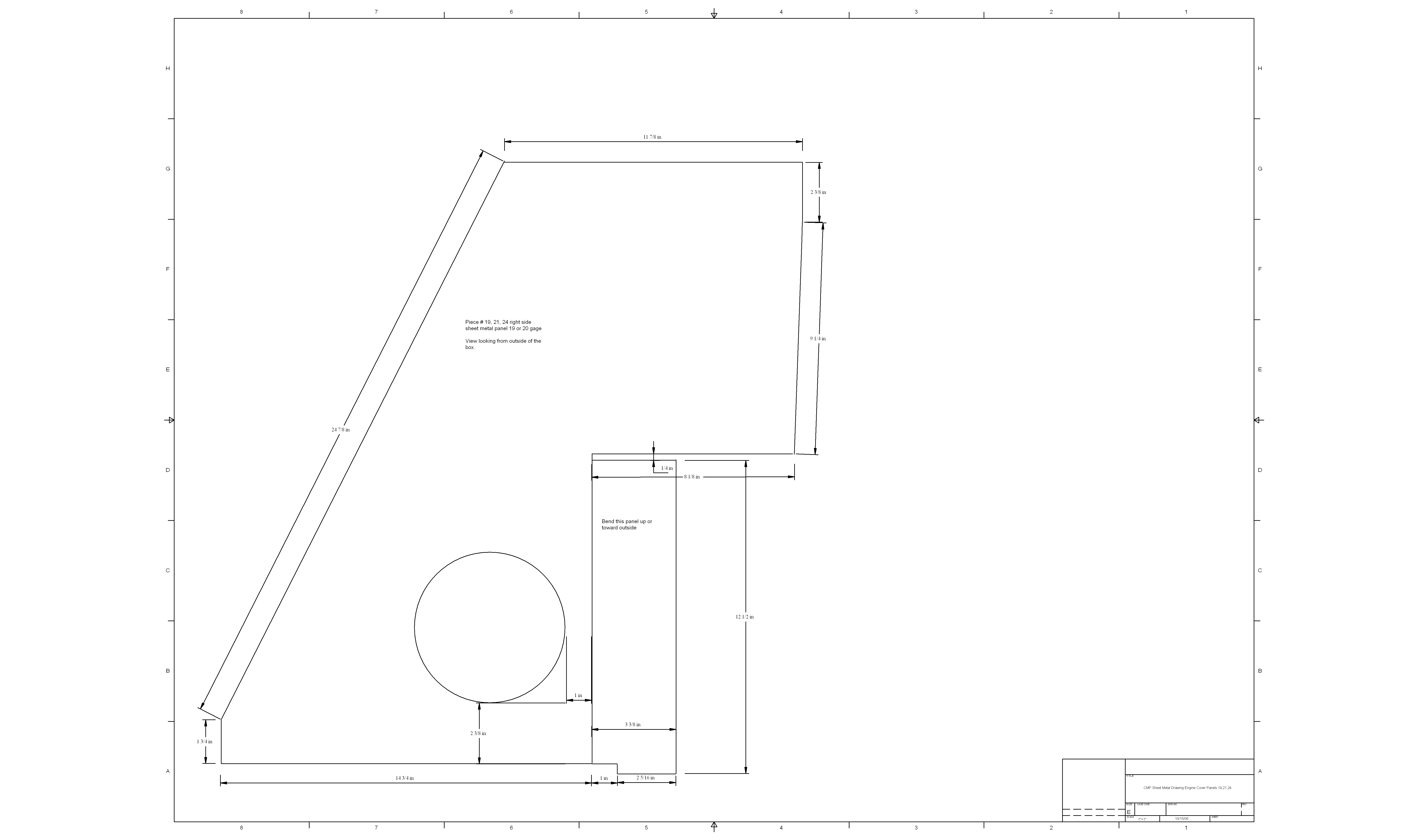

Panels 19,21,24 which in reality are a single piece
High Resolution JPG file or DWG AutoCAD file

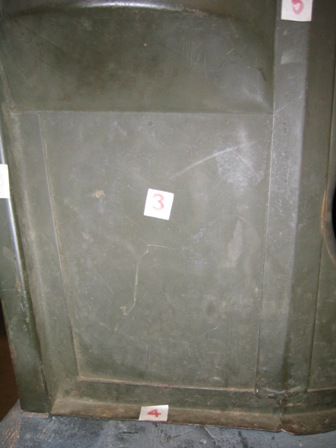

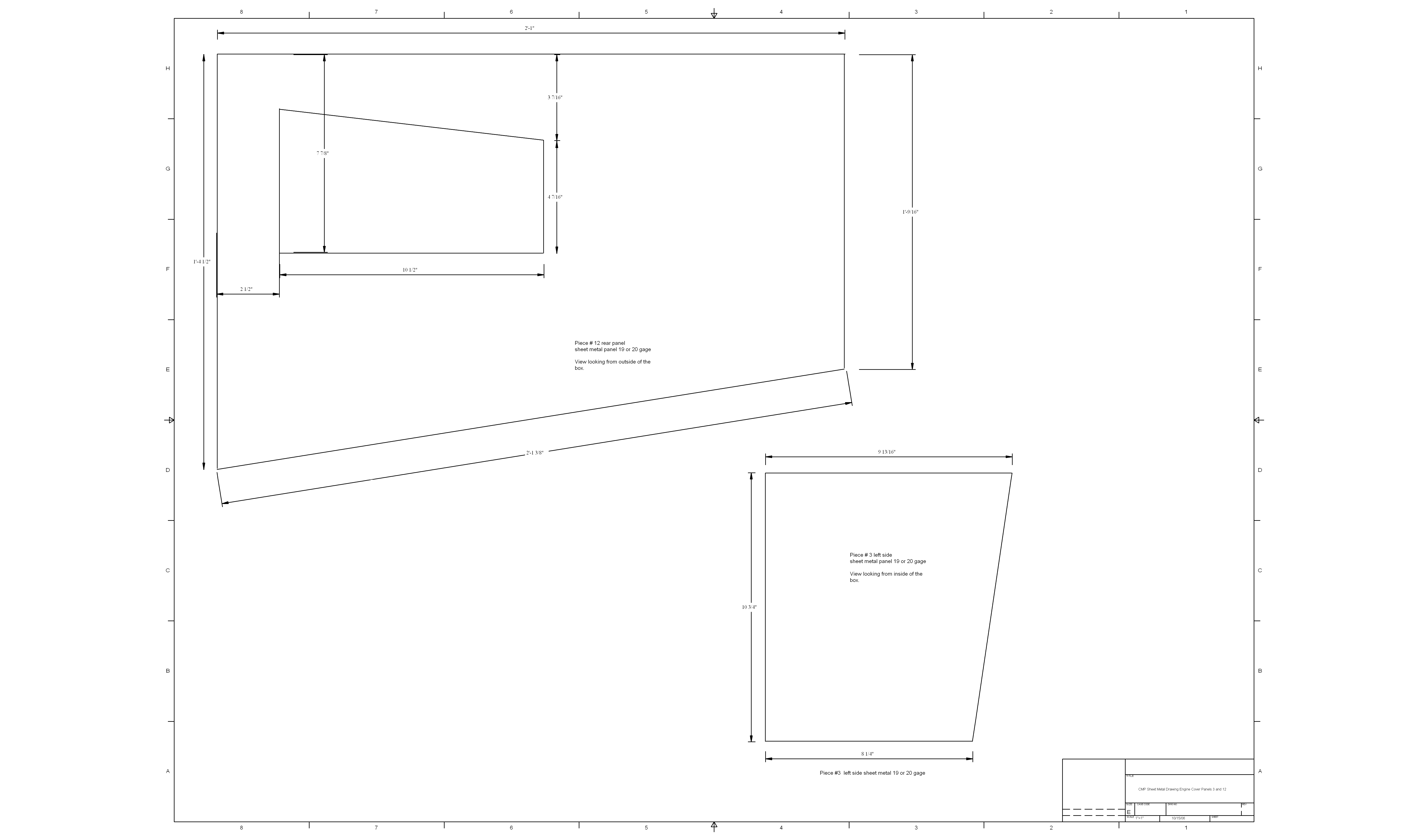

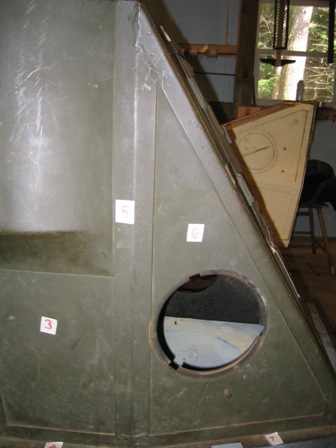

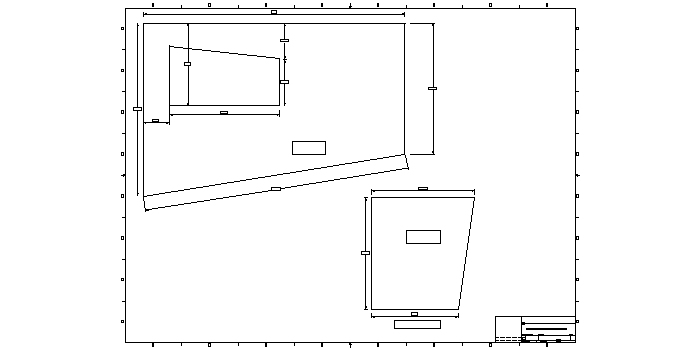

Panels 3 and 12

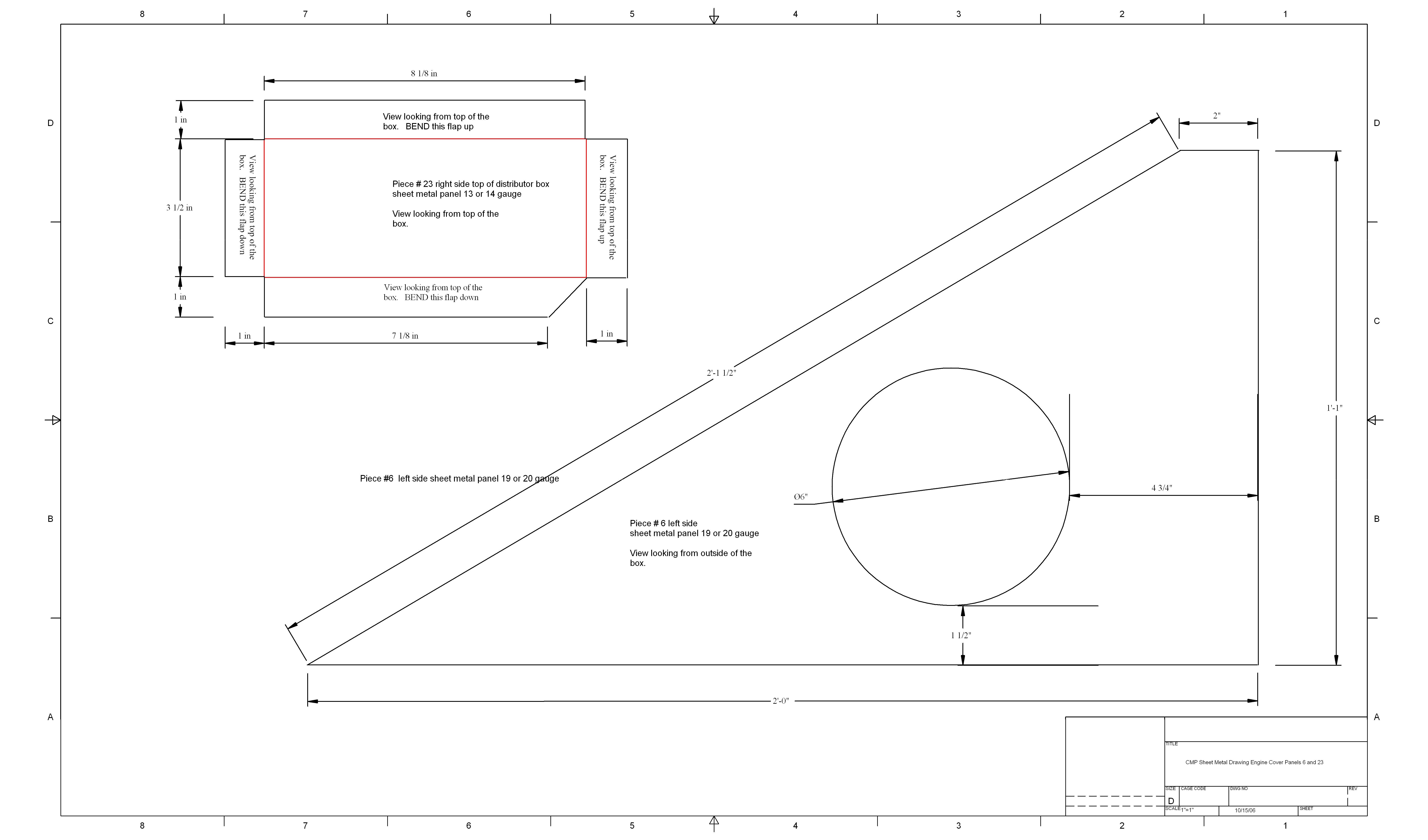

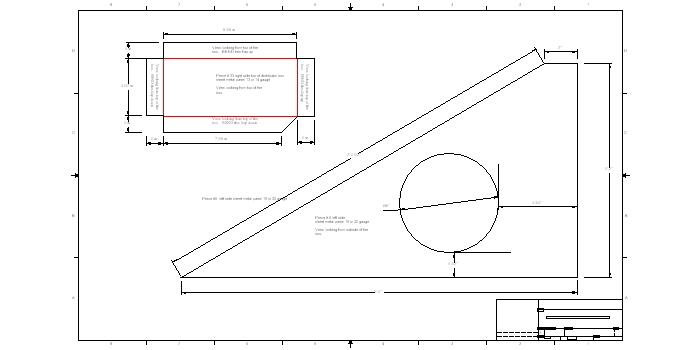

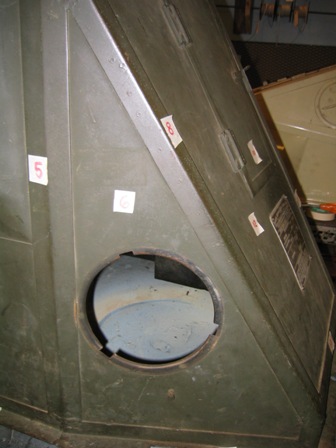

Panels 6 and 23
High Resolution JPG file or DWG AutoCAD file

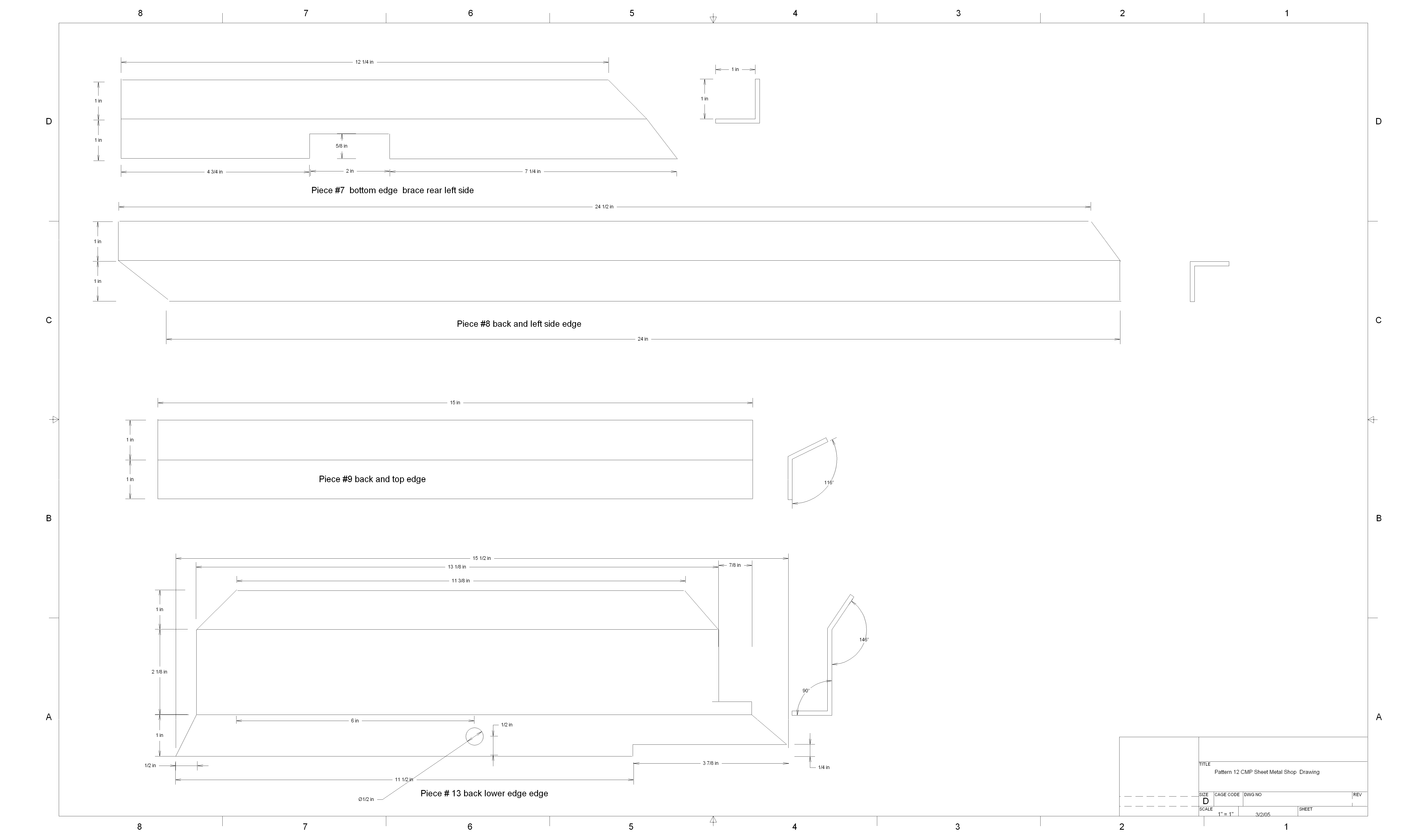

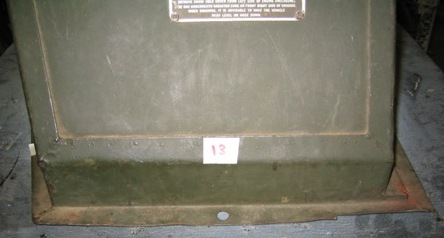

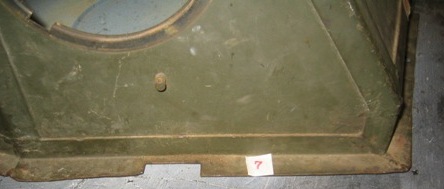

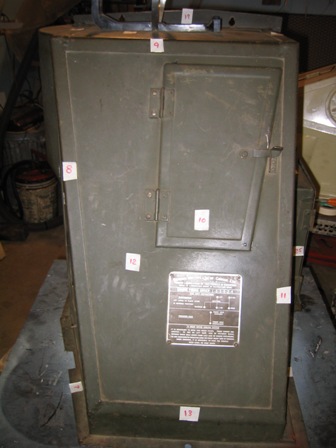

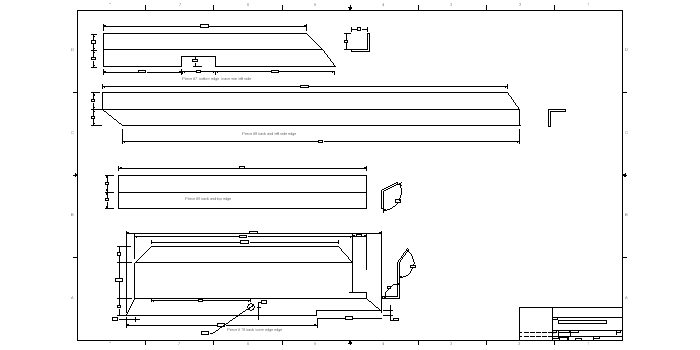

Pieces 7,8,9,13
High Resolution JPG file or DWG AutoCAD file
